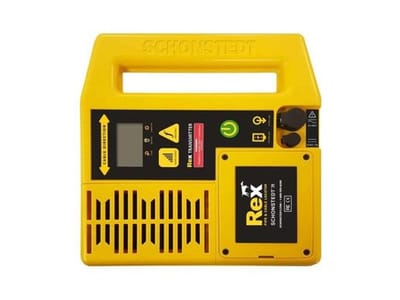

Schonstedt Rex Transmitter For the Rex receiver $2,341 Request a quote
Puts the signal on the line for the Rex receiver.
$2,224Locator Transmitters
2 locators

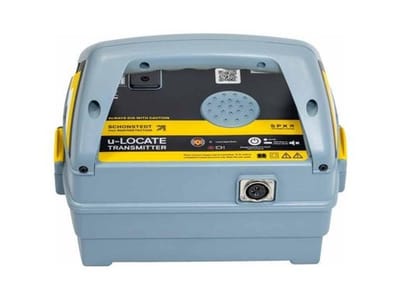

Schonstedt u-Locate Transmitter For u-Locate receivers $1,190 Request a quote
Puts the signal on the line for the u-Locate and u-Locate+ receivers.
$1,130Also shop:Locator Accessories & Parts
Which transmitter fits your receiver
For the Rex receiver
The Schonstedt Rex Transmitter sends 512 Hz, 33 kHz or 82 kHz. On a direct connection it runs up to 5 watts at 512 Hz and 33 kHz, and 1 watt at 82 kHz. It warns you if the line carries voltage before it sends a signal, and its rechargeable pack typically charges in under 4 hours.
For u-Locate and u-Locate+ receivers
The Schonstedt u-Locate Transmitter sends 33 kHz or 82 kHz on a direct connection and 82 kHz by induction. The u-Locate receiver uses 82 kHz, and the u-Locate+ adds 33 kHz. It runs up to 40 hours on 4 D cells and keeps its leads, ground stake and magnet in a tray in the case.
| Feature | SchonstedtRex Transmitter | Schonstedtu-Locate Transmitter |
|---|---|---|
| Our price | $2,224 | $1,130 |
| Works with | Rex receiver | u-Locate and u-Locate+ |
| Frequencies | 512 Hz, 33 kHz, 82 kHz | 33 kHz, 82 kHz |
| Ways to put the signal on | Direct connect, induction, clamp | Direct connect, induction, clamp |
| Batteries | Rechargeable, about 8 h | 4 D, 9 to 40 h |
| Warranty | 3 years | 1 year (extendable to 3) |
| Product page | Details | Details |
From each manufacturer's manual. Prices are ours, with the manufacturer's list price struck through.
Clip on, clamp around or induce the signal
Direct connection
Clip the lead onto the pipe, cable or tracer wire where it comes above ground, at a meter, riser, hydrant or switch box, and push the ground stake in off to the side. It gives the strongest signal, so use it whenever you can reach the line.
Signal clamp
Close a clamp around a pipe or cable when you can't clip onto bare metal. The clamp is an optional extra for both transmitters and is sold separately.
Induction
With no access point, set the transmitter on the ground over the line, lined up the way its label shows, and it induces the signal through the soil. The signal is weaker than a direct connection, and Schonstedt says to work at least 33 ft from the u-Locate transmitter in this mode.
What a receiver does without a transmitter
On their own, the Rex and u-Locate receivers pick up live power cables, and the Rex and u-Locate+ also track a sonde pushed through a plastic pipe. To trace a metal pipe, a dead cable or a tracer wire, you need the transmitter.
Questions
Will this transmitter work with my receiver?
Each one is made for its own receivers: the Rex Transmitter for the Rex receiver, and the u-Locate Transmitter for the u-Locate and u-Locate+. For any other receiver, call us before you order.
How much is a locator transmitter?
Our u-Locate Transmitter is $1,130 and the Rex Transmitter is $2,224, each sold separately from its receiver.
Not sure which transmitter you need?
Call 937-600-8155 or request a quote and tell us which receiver you have.
