Schonstedt Rex Transmitter For the Rex receiver $2,341 Request a quote
Puts the signal on the line for the Rex receiver.
$2,224Utility Locator Accessories and Parts
Our utility locator accessories start with transmitters for the Schonstedt Rex and u-Locate receivers, which are sold without one. For parts on a locator you already own, give us a call.
2 locators
Schonstedt u-Locate Transmitter For u-Locate receivers $1,190 Request a quote
Puts the signal on the line for the u-Locate and u-Locate+ receivers.
$1,130Locator transmitters for Schonstedt receivers
Three frequencies, up to 5 watts

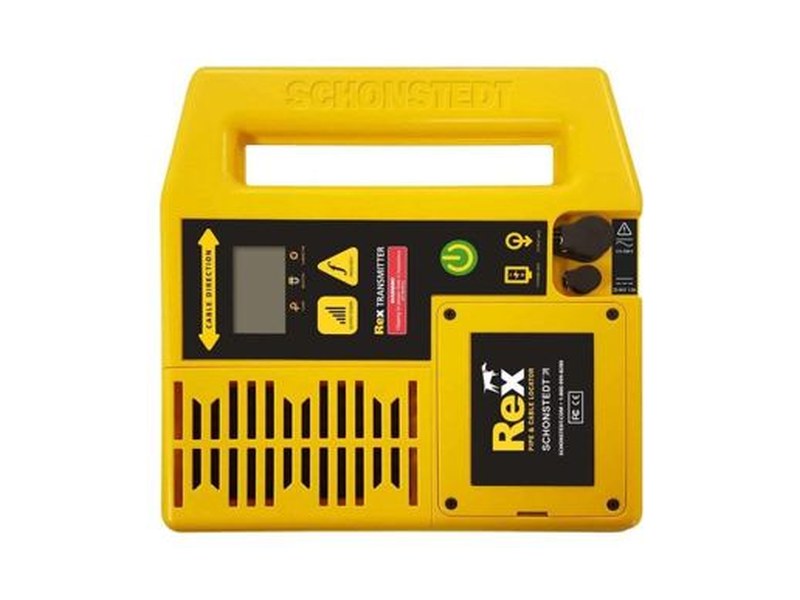

The Schonstedt Rex transmitter puts a signal on the line for the Rex receiver at 512 Hz, 33 kHz or 82 kHz. Clip on at up to 5 watts, or set it on the ground over the line to induce the signal. It runs on a rechargeable pack that typically charges in under 4 hours.
Two frequencies, runs on D cells

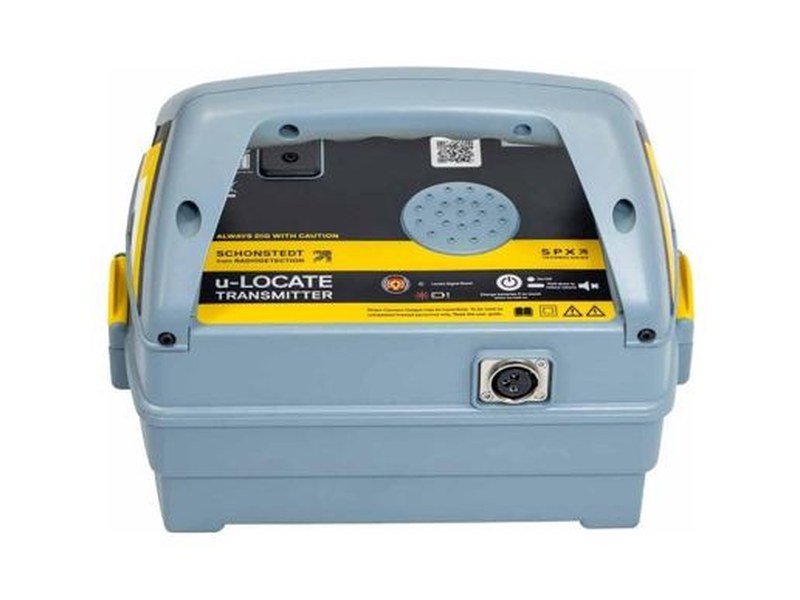

The Schonstedt u-Locate transmitter works with both the u-Locate and u-Locate+ receivers. It sends 33 kHz or 82 kHz on a direct connection, induces 82 kHz from the ground, and runs up to 40 hours on 4 D cells.
What the receivers do without a transmitter
On their own, the Rex and u-Locate receivers pick up live power cables, and the Rex and u-Locate+ also track a sonde. To trace a pipe or cable by clipping on, clamping around it or inducing a signal, you need the transmitter.
Parts and accessories for the locator you already own
Need a part or accessory for a locator you already have? Call us with the make and model, and we'll see what we can find. If it's still under warranty, call us first.
Questions
Will this transmitter work with my receiver?
Each one is made for its own receivers: the Rex transmitter for the Rex receiver, and the u-Locate transmitter for the u-Locate and u-Locate+. For any other receiver, call us before you order.
Do you sell parts for locators you didn't buy from us?
Call us with the make and model, and we'll tell you what we can do.
How much is a locator transmitter?
Our u-Locate transmitter is $1,130 and the Rex transmitter is $2,224, each sold separately from its receiver.
Looking for a part or accessory?
Call 937-657-2735 or request a quote and tell us the make and model you're working with.
