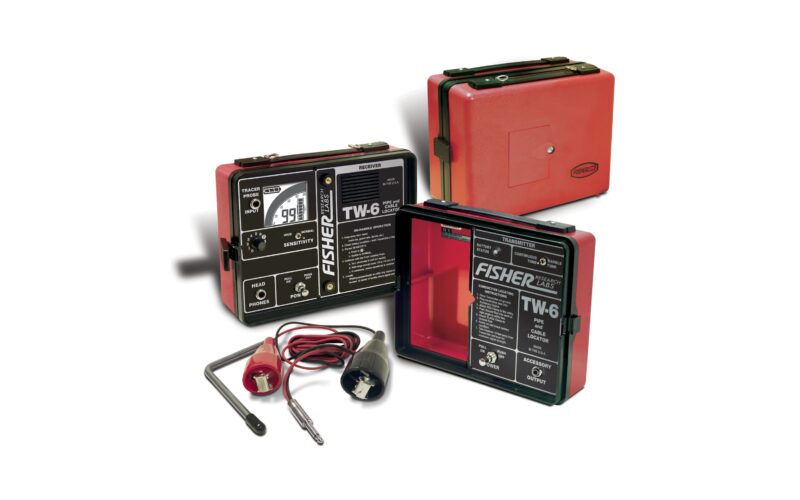

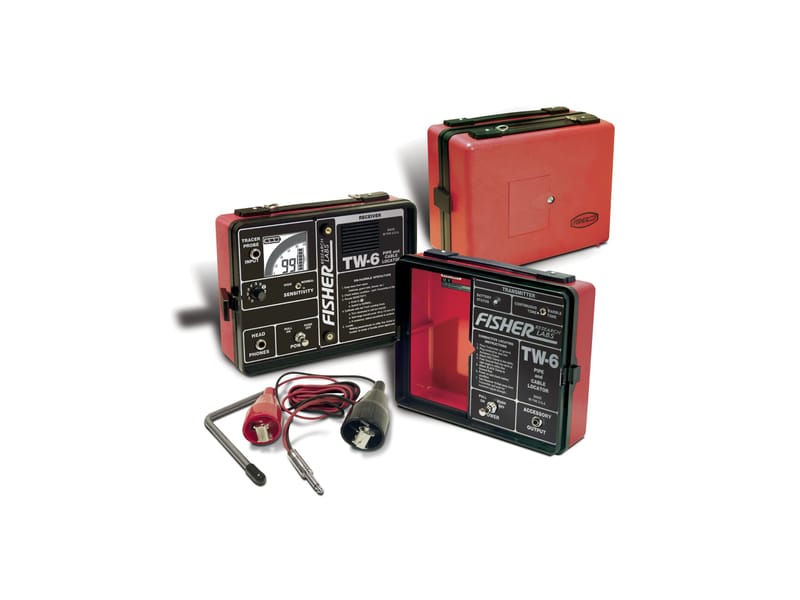

Fisher TW-6 Split Box Pipe and Cable Locator
The Fisher TW-6 finds lost or unknown pipe and cable, plus valves, tees and paved-over manholes.
$908 $956
- Sold and serviced by a family business since 1967
- Written quote by phone or email
- Repairs after the sale
- 81.92 kHzfrequency
- 2 modesinductive and conductive
- 30–40 hper set of 8 AA
- 5½ lbboth units
Fisher TW-6 price and what's in the box
The Fisher TW-6 is a split box pipe and cable locator. The transmitter puts a signal on a buried metal line and the receiver picks it up, so you can find lines you didn't know were there and follow the ones you do.
Our price
$908 $956
Our price for the Fisher TW-6 is $908 (list $956). Headphones, the coupling clamp, the tracer probe and a carrying case aren't included.

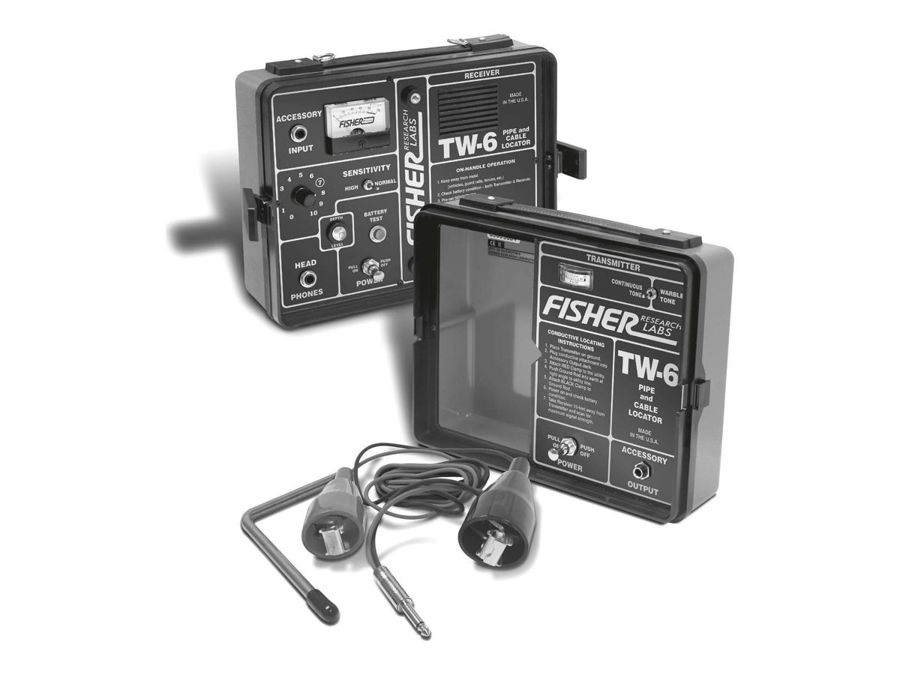

In the box
- Transmitter
- Receiver
- Batteries (8 AA in each unit)
- Ground plate assembly
- Operating manual
Your written quote confirms exactly what's included.
How a split box locator works
Finding a line when you don't know where it starts
With both boxes on the handle, walk across the spot where the line should be and mark where the signal peaks. Do it again every 15 to 20 feet and the marks show you the line. On a wide street, two people can sweep across it at least 30 feet apart.
Pinpointing and depth
Cross the line from both sides to find its center. For depth, tilt the receiver to 45 degrees with its bubble level and back away until the signal drops. That distance, minus 5 inches, is the depth.
What the TW-6 finds
- Lost or unknown lines buried metal pipe and cable, even when you don't know where they run.
- Fittings and covers valves, tees and risers off a main, and paved-over manhole covers.
- Lines you can reach clip on to a pipe or a dead cable, or use the coupling clamp when you can't get to bare metal.
- Plastic pipe run a fish tape or plumber's snake down it and trace that. The signal stops where a blockage is.
Fisher TW-6 specs
| Frequency | 81.92 kHz |
|---|---|
| Modes | inductive locating and tracing, conductive tracing |
| Batteries | 8 AA in each unit |
| Battery life | 30 to 40 hours per set, per unit |
| Weight | 5 1/2 lb for both units (transmitter 2 1/2 lb, receiver 3 lb) |
| Size | 11 1/2 x 9 x 3 in. per unit |
| Operating temperature | -10 °F to 120 °F |
| Readout | analog meter and speaker, headphone jack |
TW-6 probe, parts and repair
The TW-6 tracer probe is shorter than the older TW-5 probe and gives more accurate depth readings. A TW-5 probe still works, with less range. When your TW-6 needs work, Joe Malone tests it and replaces worn parts like switches, latches and covers.
TW-6 vs Vivax-Metrotech VM-810
Fisher TW-6finds lines you don't know about, with no hookup needed. $908.
This page
Vivax-Metrotech VM-810made for water and gas services you can connect to, with a depth and current reading at one button. $3,667.
See the VM-810Questions
How much does a Fisher TW-6 cost?
Our price is $908, and the list price is $956. Request a quote for your crew and we'll respond in writing.
Can the TW-6 find plastic pipe?
Not on its own. Push a fish tape or plumber's snake through the pipe and trace that, or trace the foil tracer tape buried above it.
Get a quote on the Fisher TW-6
Call 937-657-2735 or request a quote, and we'll get back to you with price and availability.
