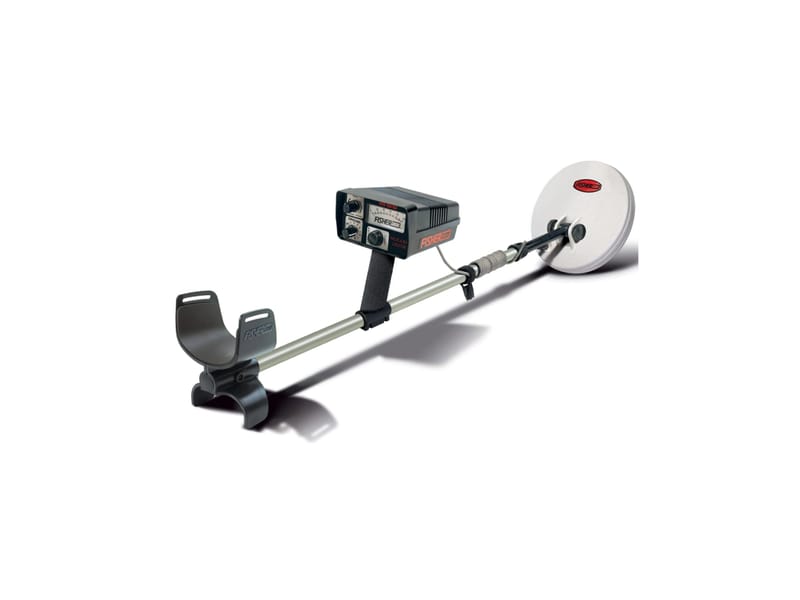

Fisher M-66 Valve and Box Locator
The Fisher M-66 finds buried and paved-over valve boxes and other metal, and works through concrete and asphalt.
$532 $560
- Sold and serviced by a family business since 1967
- Written quote by phone or email
- Repairs after the sale
Fisher M-66 price and what's in the box

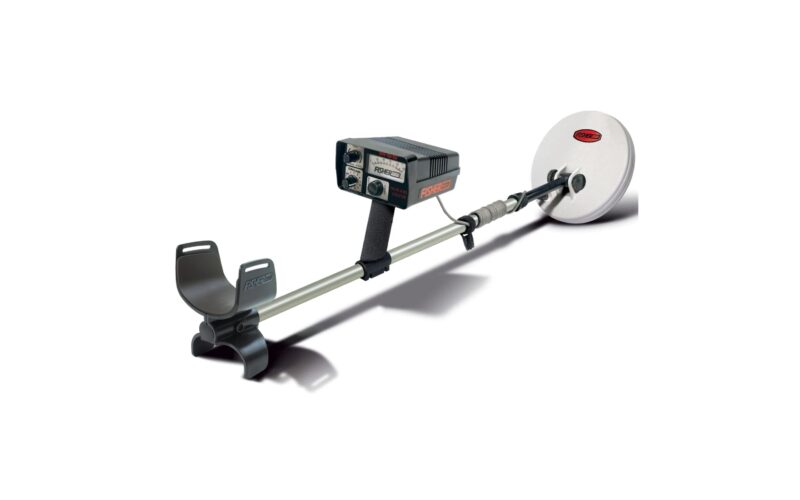

The Fisher M-66 is a valve and box locator: an all-metal detector made for utility crews. It finds buried valve boxes and other metal, even under concrete and asphalt, with two knobs, a meter and a speaker.
Our price
$532 $560
Our price for the Fisher M-66 is $532 (list $560). It comes ready to use.
In the box
- Control box with meter and speaker
- 8 in. double-D search coil
- Two-piece adjustable stem with arm cuff and grip
Your written quote confirms exactly what's included.
How to find a valve box with the M-66
Tune it and balance out the ground
Away from any metal, turn the Ground knob to 5 to switch it on, then turn Tuning until you hear a faint hum and the needle sits near 10. Lift the coil about a foot. If the tone changes, adjust Ground until it stays the same.
Sweep and outline the target
Swing the coil slowly from side to side at a steady height, overlapping each pass. The tone and the needle climb over metal. A big or shallow target can read larger than it is, so raise the coil or back Tuning off a quarter turn and sweep again to find its edges.
What the M-66 finds
- Valve boxes buried ones, and ones that have been paved over.
- Metal under pavement it searches through concrete and asphalt, not just dirt and grass.
- All metals it's an all-metal detector, so it isn't limited to iron and steel.
- Tracer tape foil tape laid 8 to 10 inches down over plastic pipe.
Fisher M-66 specs
| Type | all-metal detector |
|---|---|
| Search coil | 8 in. double-D, can be submerged |
| Frequency | 4.5 kHz |
| Controls | Tuning and Ground knobs, battery test button |
| Ground balance | cancels out minerals in the soil |
| Readout | analog meter and speaker |
| Batteries | 9 V |
| Weight | 4.25 lb with the 8 in. coil |
| Length | adjustable, 28 to 48 in. |
| Operating temperature | -4 °F to 158 °F |
M-66 parts and repair
Weak batteries cost the M-66 depth and accuracy, so press Battery Test first: 80 to 100 on the meter is good. When it needs real work, Joe Malone tests it, checks the controls and replaces worn parts like coils, switches and covers.
M-66 vs Fisher TW-6
Fisher M-66finds valve boxes and other buried metal, even under pavement. It doesn't trace lines. $532.
This page
Fisher TW-6finds and follows buried pipe and cable, and picks up valves, tees and paved-over manholes along a main. $908.
See the TW-6Questions
How much does a Fisher M-66 cost?
Our price is $532, and the list price is $560. Request a quote for your crew and we'll respond in writing.
Is the M-66 a metal detector or a magnetic locator?
It's a metal detector. It responds to all metals, while a magnetic locator like the Schonstedt GA-52Cx finds only iron and steel.
Can the M-66 trace a pipe or cable?
No. It finds metal objects, and Fisher says not to use it in place of a line tracer. To follow a line, pair it with a pipe and cable locator like the Fisher TW-6.
Get a quote on the Fisher M-66
Call 937-657-2735 or request a quote, and we'll get back to you with price and availability.
